PROTECTION AND SAFETY WITH SOFT SIDE RAILS

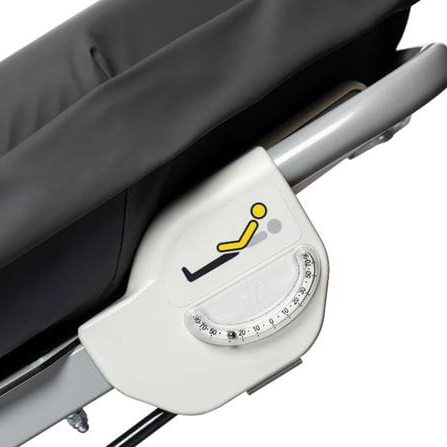

The side handrails cover most of the patient's body and, while providing access for the carer, the SoftDrop feature ensures a smooth and gentle lowering to prevent the arm from being pinched. Thanks to the 4-section bed, foot controls and integrated angle indicator, the Sprint 100 can be placed in several positions, including:
- Cardio chair
- Vascular position
- Trendelenburg
- Reverse Trendelenburg CONSTANT ERGONOMICS
Thanks to the innovative IV&Drive® concept, carers can push the stretcher from any height.

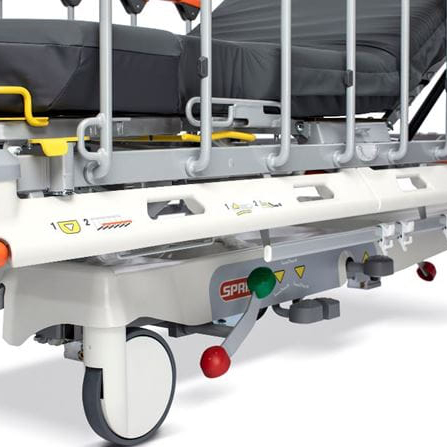

ERGONOMIC BRAKING WITH EASY BRAKE
Releasing or activating the brakes by pressing the foot lever downwards with clear visibility of the brakes contributes to ergonomic operation.
SMOOTH STEERING WITH FLEXIDRIVE
The 5th wheel helps with steering, bumps and cushioning.
Technical data:
| 2 sections narrow base | 2 sections wide base | 4 sections narrow base | 2 sections wide base | |
| External dimensions | 211 × 76 cm | 211 × 86 cm | 211 × 76 cm | 211 × 86 cm |
| Mattress bed | 193 × 66 cm | 193 × 76 cm | 193 × 66 cm | 193 × 76 cm |
| Height adjustment | 56.5-89 cm | 56.5-89 cm | 55.5-88 cm | 55.5-88 cm |
| Backrest tilt angle | 0-90° | 0-90° | 0-90° | 0-90° |
| Maximum hip angle of inclination | - | - | 0-40° | 0-40° |
| Angle of inclination of the lower leg section | - | - | 0-21° | 0-21° |
| Height of the sidewall above the mattress base | 35.5 cm | 35.5 cm | 36.5 cm | 36.5 cm |
| Safe working load (SWL) | 320 kg | 320 kg | 320 kg | 320 kg |
| Average weight of the trolley | 120 kg | 135 kg | 120 kg | 135 kg |
