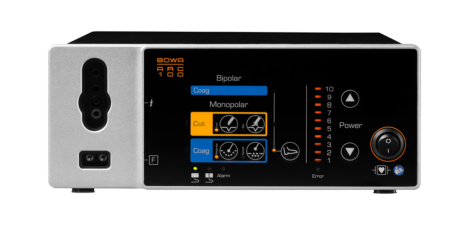

Compact high-frequency generator from BOWA with intuitive operation and 100% safety

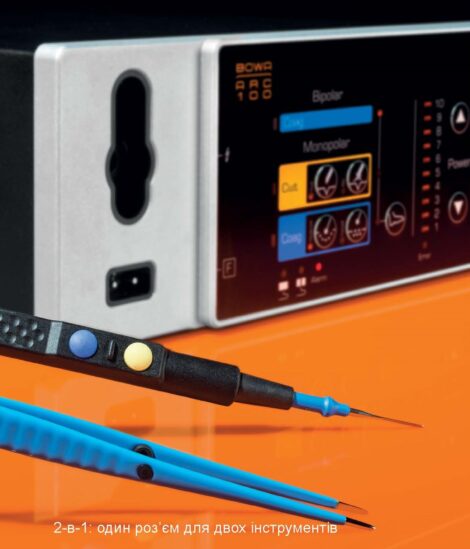

The compact multi-function socket for simultaneous connection of one bipolar and one monopolar instrument provides maximum functionality in a minimum footprint, making the ARC 100 one of the most economical electrosurgical systems in the 100-watt class.

Intuitive operation:

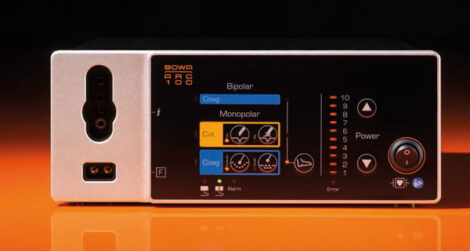

All fabric effects and power settings are intuitively selected at the touch of a button. The output power can be quickly and easily adjusted in 10 W increments at the touch of a finger. With the ARC 100, you always have everything in sight: the selected mode and the set power are shown at all times by the light indicators.

Easy and quick assignment of the foot switch:

The foot switch can be assigned to all ARC 100 functions at the touch of a button. The special foot switch for the ARC 100 has a side stop to the left and right of the pedal, which provides an ergonomic way of working and blind foot guidance.

Electrosurgical device with five different tissue effects

The ARC 100 electrosurgical device offers five different tissue effects: two monopolar cutting functions, two monopolar coagulation functions and one bipolar coagulation function. The foot switch can be used to activate all modes. Handle activation is also available for monopolar cutting and coagulation.

Precise monopolar cutting and efficient coagulation:

Pure CUT and Dry CUT are available for monopolar cutting. Due to its larger arc, Dry CUT delivers a significantly deeper coagulation effect during cutting.

For monopolar coagulation, the device offers moderate and forced modes. Moderate mode provides less carbonisation and coagulation with increased penetration depth. The Forced Coag mode is predefined for fast and effective haemostasis with less tissue penetration.

Perfect bipolar coagulation:

Bipolar COAG enables precise tissue coagulation with a bipolar instrument, e.g. bipolar forceps. A neutral electrode is not required for bipolar coagulation.

Areas of application of the RF generator

The ARC 100 is suitable for a variety of applications in HF surgery:

• General, visceral, thoracic, paediatric surgery
• Gynaecology
• ENT
• Plastic and cosmetic surgery
• Maxillofacial surgery

Technical specifications

• Size / Dimensions 280 x 114 x 310 mm
• Total gross weight 7.8 kg
• Net unit weight 5.6 kg
• Sterile / non-sterile unsterile
• Preparation Disinfectant wipe
• Permitted combinations Accessories 3-pin International, 6/2 mm Martin, 220-345, 901-012, 901-126
• Packaging unit (1 pc.)
• Scope of delivery incl. operating instructions, power cable.
• CE conformity marking YES
• EU classification of medical equipment IIb
• Manufacturer BOWA-electronic GmbH & Co. KG
