95-3930 EndoorCam 10 visualisation system
Tontarra GmbH, Germany
EndoorCam 10 Full HDs process the signal from the camera head to the controller and monitor. HD resolution of 1920 x 1080 pixels makes fine details more visible than on SD cameras
For Full HD series controllers EndoorCam 10 can connect different camera heads. You can select the appropriate models depending on the application and your requirements.
- Full HD image recording via USB
- Multidisciplinary approach
- Video algorithms: selective colour enhancement, smoke reduction, grid removal
- Compatible with Full HD camera heads:
- camera head Full HD zoom, Full HD at an angle of 90°
Technical data
| Control panel | On/off, menu, white balance, photo |
| Video output | High resolution 2 x DVI (1080p), 2 x SDI (1080p) |
| Remote outputs | 2 x 3.5 mm jacks (for connecting recording/printer devices) |
| Remote inputs | 2 x 3.5 mm female connectors (for connecting the footswitch) |
| Connection | MIS-Bus interface |
| Dimensions/weight | 295 x 100 x 355 mm (W x H x D) / 4.39 kg |
System
| Compliance with the standard | IEC 60601-1 |
| Compliance with the directive | CE mark |
| Supply voltage | 100 - 240 V AC, 50/60 Hz |
| Current consumption | 0,8 - 0,4 А |
| Protection class according to IEC 60601-1 | Protection class I |
| Degree of protection | IP 21 |
| Classification according to the Medical Devices Regulation (EU) 2017/745 | Class I medical device |
| Classification according to IEC/CISPR 11 | Group 1, class B |

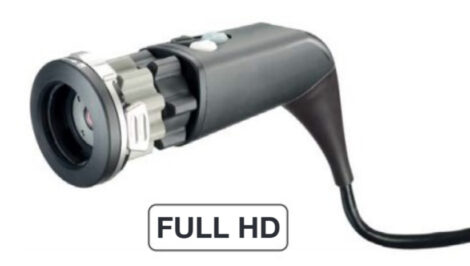

EndoorCam Full HD camera head
- Full HD sensor resolution
- Backlit control buttons
- 2x optical zoom
- 3x digital zoom
- Time-saving and useful presets
- Sterilisation via Sterrad
- All rigid, flexible or semi-flexible endoscopes with a standard eyepiece can be connected
Technical data
| Image sensor | 1/3″ CMOS, progressive scan |
| Sensor resolution | 1920 x 1080, 50/60p |
| Function keys | 3 individual programmable keys with backlighting |
| Parfocal zoom | f = 14.25 - 28 mm |
| Waterproof plug | yes |
| Degree of protection | IPX 7 |
| Lockable endoscope connection | yes |
| Camera cable length | 3,5 м |
| Weight of the camera head (without cable) | 210 г |

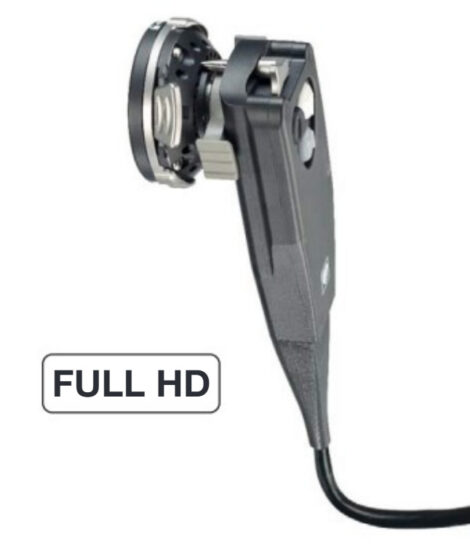

EndoorCam Full HD camera head at 90° angle
- Full HD sensor resolution
- Backlit control buttons
- 3x digital zoom
- Lightweight and slim design
- Time-saving and useful presets
- Sterilisation via Sterrad
- All rigid, flexible or semi-flexible endoscopes with a standard eyepiece can be connected
Technical data
| Image sensor | 1/3″ CMOS, progressive scan |
| Sensor resolution | 1920 x 1080, 50/60p |
| Function keys | 3 individual programmable keys with backlighting |
| Parfocal zoom | f = 14,25 |
| Waterproof plug | yes |
| Degree of protection | IPX 7 |
| Lockable endoscope connection | yes |
| Camera cable length | 3,5 м |
| Weight of the camera head (without cable) | 190 г |
